Features:

high voltage resistance ;  acid and alkali resistance

cold resistance;  moisture-proof

strong flexibility;  oil resistance;  mildew-proof

Characteristics:

1. Can be used in applications up to 1,500 V
2. It can meet the application range of different currents of 120A & 150A & 200A
3. It can ensure the normal operation of the equipment under extreme temperature conditions from -40°C to 125°C.
4. The production and processing of wire harness products conform to the IPC/WHMA-A-620 standard.

   1500V 8.0 energy storage cable

   Features:

   • Ease of assembly, press-to-release design, tool free design
   • Touch proof, safety, reliability
   • 360° rotating plug, conserve space, operational efficiencies
   • Smaller size with plastic housing
   • UL94 V-0 material
   • Compliant with RoHS
   • Low application cost

     Controlling Wire

     Designed for internal or external machine equipment connections, connecting control panels, terminal blocks, PCB boards, and other components.

     Main material types:

     various terminals, rubber shells, connectors , electronic wires, multi-core wires, cable ties, various casings , labels, tapes , injection molded parts and hardware, etc.

     Features:

     According to the diversity of different connectors and wires of the equipment, the wires are mainly ordinary electronic wires and multi-core wires, which do not need to be moved frequently inside the machine, and the requirements of different use environments are also different. The external requirements of the machine are UV resistant, Oil-resistant, wear-resistant, etc.

     Specifications:

     • Processing technology: welding & riveting & injection molding & assembly molding
     • Working temperature -40～105℃ (can be selected according to application requirements)
     • Working voltage: S≤0.75mm²   30/300/500V;  S≥1.0mm²   450/750V

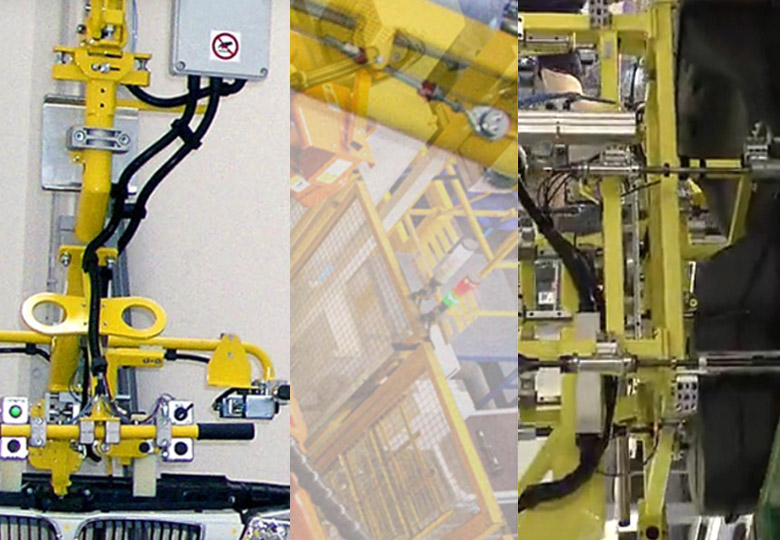

       Robot Body Wiring Harness

       The Robot Body Wiring Harness is a crucial component in the operation of robots as it connects all the electrical and electronic components to ensure smooth communication and power flow between them.

       Main Features:

       Suitable for occasions that require frequent movement, bending, and twisting, it should have the following characteristics compared to ordinary cables: high flexibility, oil resistance, water resistance, weather resistance, low-temperature resistance, wear resistance, and ability to withstand heavy mechanical forces.

       The cable has faster acceleration and stronger resistance to bending than ordinary flexible cables.

       It has high torsional resistance and other characteristics and is ingeniously wired between the bending robot arms.

       It can withstand many folding and bending cycles, greatly increasing the service life of the equipment.

       Specifications:

       • Main Materials: various terminals, rubber shells, connectors, electronic wires, multicore wires, zip ties, sleeves, spiral tubes, labels, adhesive tape, injection-molded parts, hardware, etc.
       • Wire bending test requirements: 2-50 million cycles in 2D and 3D & vertical torsion test (according to customer requirements)
       • Processing technology: welding, riveting, injection molding, assembly molding
       • Operating temperature: -40~105℃ (can be selected according to usage requirements)
       • Operating voltage: S≤0.75mm²  30/300/500V;  S≥1.0mm²  450/750V

         Robot Drag Chain Wire

         ASM is an experienced cable manufacturer and provides integrated solutions in industrial markets.

         Main Features:

         • Suitable for frequent movement and bending occasions, it should have the following characteristics compared to ordinary cables: high flexibility, oil resistance, water resistance, UV resistance, weather resistance, low-temperature resistance, wear resistance, and ability to withstand heavy mechanical forces.
         • The cable has faster acceleration and stronger resistance to bending than ordinary flexible cables.
         • High torsional resistance and other characteristics, and are wired inside the chain track, continuously moving and working in the bending area.
         • They can withstand many folding and bending cycles, greatly increasing the service life of the equipment.

         Specifications:

         • Main material types: various terminals, rubber shells, connectors, wires, cables, air pipes, oil pipes, water pipes, wire clamps, drag chains, comb-like boards, zip ties, sleeves, hardware, etc.
         • Wire bending test requirements: 2-50 million cycles
         • Processing technology: welding, riveting, injection molding, assembly molding
         • Operating temperature: -40~105℃ (can be selected according to usage requirements)
         • Operating voltage: S≤0.75mm²  300/500V;  S≥1.0mm²  450/750V

           Servo Wiring Harness

           The servo wiring harness is designed specifically for use in industrial machinery that requires accurate motor control.

           The servo wiring harness is a reliable and cost-effective solution for any industry requiring precision motor control. With its high-quality materials, versatile design and easy installation process it offers optimal performance at all times ensuring your machinery runs smoothly without interruption.

           • Main materials: aviation plugs & fork terminals, copper tube terminals, rubber shells, connectors, multi-core shielded wires, number tubes & cable ties & tapes, etc.
           • By equipment model: Panasonic Servo & Sanling Servo & Yaskawa Servo & Delta Servo & Hechuan Servo & Fuji Servo, etc.
           • By application: power wire & coding wiree & I/O control wire
           • Wire bending test: 2 million to 20 million cycle drag test
           • 2D and 3D & vertical torsion test: 100,000 to 5 million times (according to customer requirements)
           • Processing technology: welding & riveting & injection molding assembly
           • Working temperature: -40～105℃ (can be selected according to application requirements)
           • Working voltage: S≤0.75mm²  300/500V  S≥1.0mm²  450/750V
